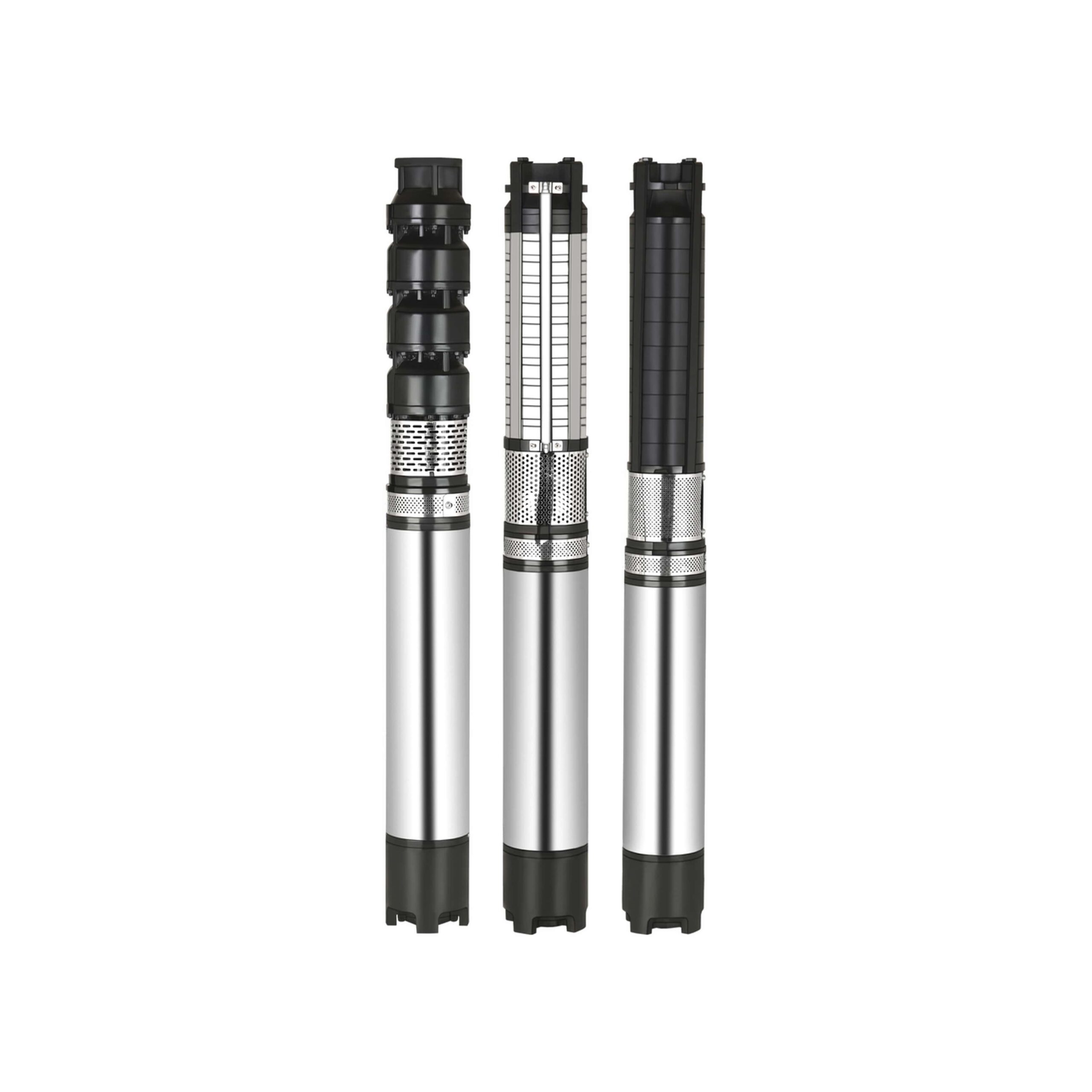

V-6 BORE WELL SUBMERSIBLE PUMP SET
V-6 BORE WELL SUBMERSIBLE PUMP SET
₹0.00
Salient Features:
- Corrosion resistant stainless steel body.
- Specially designed to start in low voltage and sustain in high voltage fluctuations.
- High electrical and mechanical efficiency.
- Higher heat dissipation.
- Dynamically balanced rotor and other rotating parts for uniform clearance.
- Specially designed bearing to withstand axial thrust loads.
- Designed for high voltage fluctuations.
- Noise free operation.
- Modular design and all parts are easily interchangeable.
- Energy Efficient Models.
- Higher efficiency resulting in lower operating cost.
Application:
- Agriculture Farm
- Residential Complex
- Industries Water Supply
- High Rise Buildings
- Sprinkler & Drip Irrigation
- Hospitals
- Gardens
- Water Treatment Plant
| Technical Specification | |
|---|---|
| Bore Size | 150 MM (6″) |
| Category | B |
| Range of Power | 2.2Kw to 15Kw |
| Duty Type | S1 (Continuous) |
| Range of HP Three Phase | 3.00HP to 20.00HP |
| Type | Wet Type |
| Rated Speed in RPM | 2880 |
| Connection | Star & Star Delta |
| Frequency | 50 Hz |
| Pump Type | Q-type & K-Type |
| Operating Details | |
|---|---|
| Head Range of Three Phase | 5–390 Mtr. |
| Discharge Range of Three Phase | 1200 LPM (72.0 m³/hr) to 50 LPM (3.0 m³/hr) |
| Outlet | 2″, 2.5″, 3″ |
| Maximum Operating Pressure | 39.0 Bar |
| Maximum Liquid Temperature | 35°C |
| Materials Details | |
|---|---|
| Motor Body | SS 202 |
| Bearing Bush | LTB – 4 Bronze |
| Motor Shaft / Pump Shaft | SS 410 |
| Thrust Bearing | SS 420 & Graphite Carbon Tilting Ped |
| Housing / Base / NRV / Suction | CI – FG -200 & S.S. 304 |
| Stamping | CRNO – M45 |
| Screws / Studs | SS 410 & SS 202 |
| Impeller / Bowl | NORYL GNF2 Techno Polymer, CI – FG -20, S.S. 304 & S.S. 410 |
| Winding Wire | E.C. Grade High Insulation |
| Rotor | E.C. Grade Copper & CRNO – M45 |
| PCD Cup | Nitrile Rubber |
