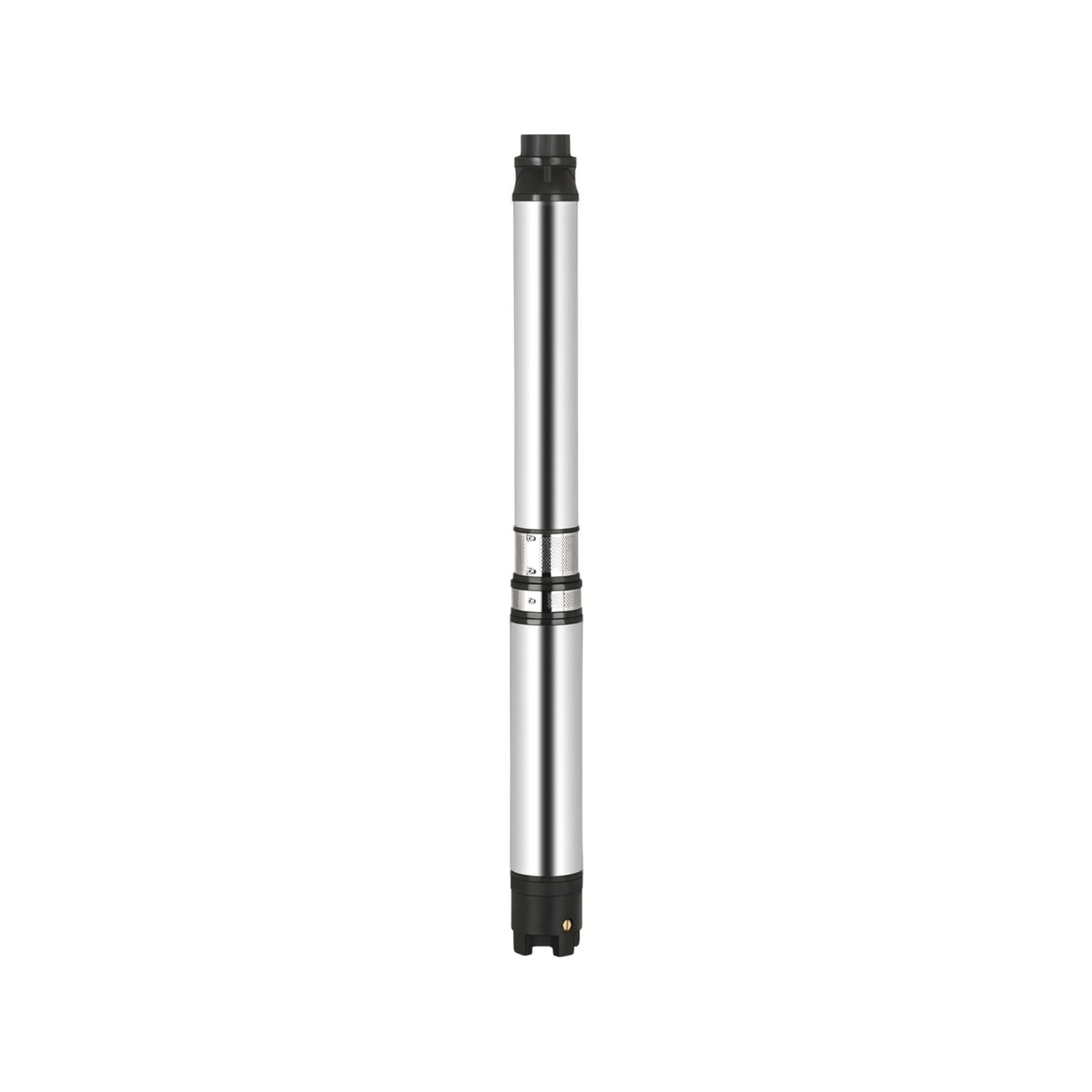

V-4 BORE WELL SUBMERSIBLE PUMP SET
V-4 BORE WELL SUBMERSIBLE PUMP SET
₹0.00
Salient Features:
- Corrosion resistant stainless steel body.
- Specially designed to start in low voltage and sustain in high voltage fluctuations.
- High electrical and mechanical efficiency.
- Higher heat dissipation.
- Dynamically balanced rotor and other rotating parts for uniform clearance.
- Specially designed bearing to withstand axial thrust loads.
- Designed for high voltage fluctuations.
- Noise free operation.
- Modular design and all parts are easily interchangeable.
- Energy Efficient Models.
- Higher efficiency resulting in lower operating cost.
Application:
- Agriculture Farm
- Residential Complex
- Industries Water Supply
- High Rise Buildings
- Sprinkler & Drip Irrigation
- Hospitals
- Gardens
- Water Treatment Plant
| Technical Specification | |
|---|---|
| Bore Size | 100mm |
| Frequency | 50Hz |
| Range of Power | 0.37kW To 5.5kW |
| Category | B |
| Range Of HP Single Phase | 0.5 To 5.00HP |
| Range Of HP Three Phase | 1.0 To 7.50HP |
| Duty Type | S1 (Continuous) |
| Version | Single Phase 220V & Three Phase 415V |
| Type | Wet Type |
| Rated Speed | 2900 RPM |
| Connection | Star & SD |
| Pump Type | K-Type (Radial Flow) & Q-Type (Mix-Flow) |
| Operating Details | |
|---|---|
| Head Range Single Phase | 5 To 250 Mtr. |
| Head Range of Three Phase | 5 To 460 Mtr. |
| Discharge Range Single Phase | 465 LPM (28.0 m³/hr) To 15 LPM (0.9 m³/hr) |
| Discharge Range of Three Phase | 465 LPM (28.0 m³/hr) To 15 LPM (0.9 m³/hr) |
| Delivery Size in mm | 25mm, 32mm, 40mm, 50mm, 65mm |
| Maximum Operating Pressure | 46.0 Bar. |
| Maximum Liquid Temperature | 45° |
| Material Details | |
|---|---|
| Motor Body / Pump Body | SS 202 |
| Bearing Bush | LTB – 4 Bronze |
| Motor Shaft / Pump Shaft | SS 410 |
| Thrust Bearing | SS 420 & Graphite Carbon Tilting Ped |
| Housing / Base / NRV / Suction | CI-FG-20 |
| Stamping | CRNO – M45 |
| Screws / Studs | SS 410 & SS 202 |
| Impeller / Bowl | NORYL GNF2 Techno Polymer & C.I. FG-20 |
| Winding Wire | E.C. Grade High Insulation |
| Rotor | E.C. Grade Copper & CRNO – M45 |
| PCD Cup | Nitrile Rubber |
