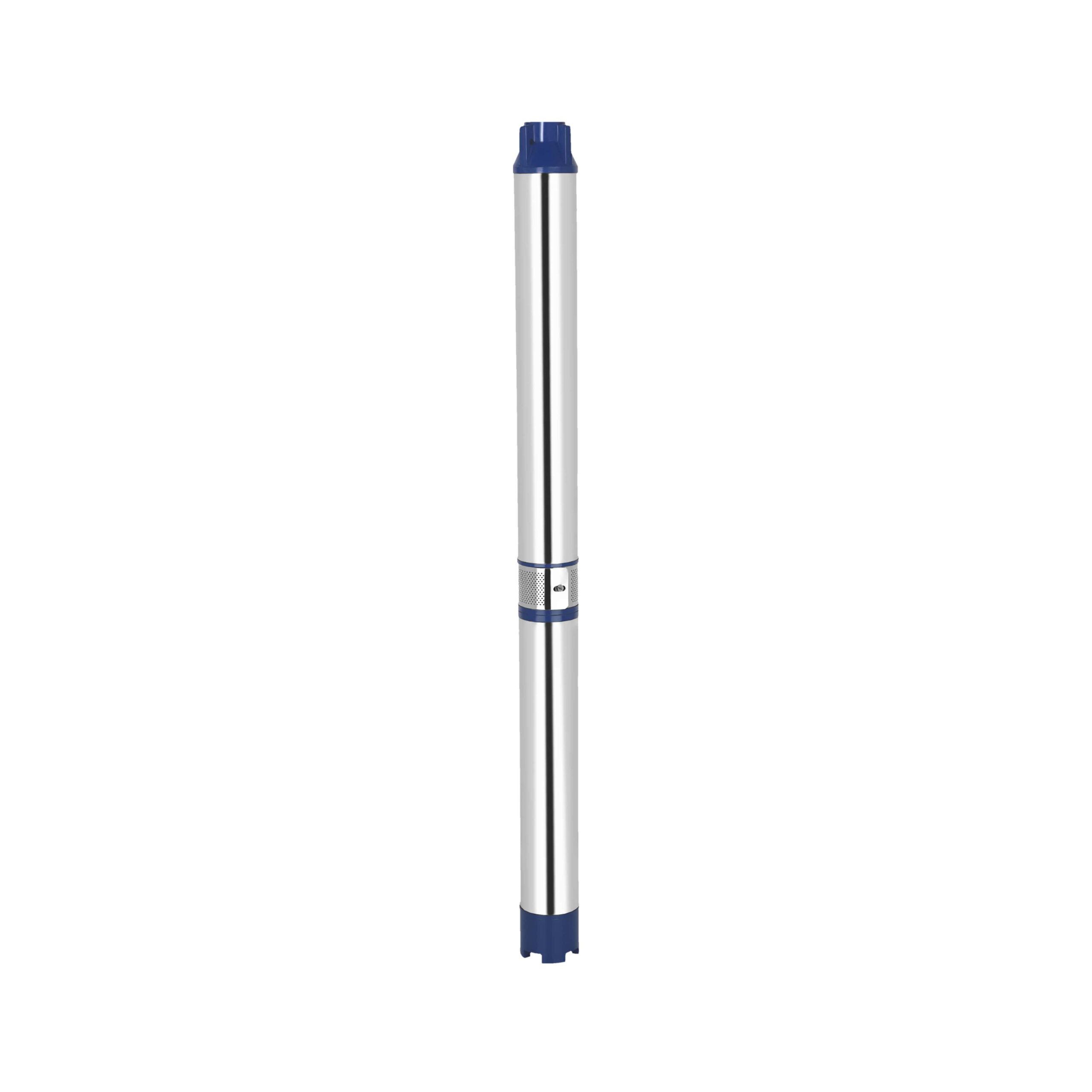

V-3 BORE WELL SUBMERSIBLE PUMP SET
V-3 BORE WELL SUBMERSIBLE PUMP SET
₹0.00
Salient Features:
- Corrosion resistant stainless steel body.
- Specially designed to start in low voltage and sustain in high voltage fluctuations.
- High electrical and mechanical efficiency.
- Higher heat dissipation.
- Dynamically balanced rotor and other rotating parts for uniform clearance.
- Specially designed bearing to withstand axial thrust loads.
- Designed for high voltage fluctuations.
- Noise free operation.
- Modular design and all parts are easily interchangeable.
- Energy Efficient Models.
- Higher efficiency resulting in lower operating cost.
Application:
- Agriculture Farm
- Residential Complex
- Industries Water Supply
- High Rise Buildings
- Sprinkler & Drip Irrigation
- Hospitals
- Gardens
- Water Treatment Plant
| Technical Specification | |
|---|---|
| Bore Size | 80 MM (3″) |
| Frequency | 50Hz |
| Range of Power | 0.37Kw to 0.93Kw |
| Category | B |
| Range of HP | 0.5 to 1.25 |
| Duty Type | S1 (Continuous) |
| Version | Single Phase 140 to 240 Volt |
| Type | Wet Type |
| Rated Speed | 2880 RPM |
| Connection | Parallel (CSCR) |
| Operating Details | |
|---|---|
| Head Range | 5 to 104 Mtr. |
| Discharge Range | 110 LPM (6.60 m³/hr) to 15 LPM (0.9 m³/hr) |
| Outlet | 1″, 1.25″ |
| Maximum Operating Pressure | 10.04 Bar |
| Maximum Liquid Temperature | 35° |
| Particulars | Materials of Construction |
|---|---|
| Motor Body / Pump Body | SS 202 |
| Bearing Bush | LTB – 4 Bronze |
| Motor Shaft / Pump Shaft | SS 410 |
| Thrust Bearing | SS 420 & Graphite Carbon |
| Housing / Base / NRV / Suction | CI-FG-20 |
| Stamping | CRNO – M45 |
| Screws / Studs | SS 410 & SS 202 |
| Impeller / Bowl | Noryl GNF2 Techno Polymer |
| Winding Wire | E.C. Grade High Insulation |
| Rotor | E.C. Grade Copper & CRNO – M45 |
| PCD Cup | Nitrile Rubber |
