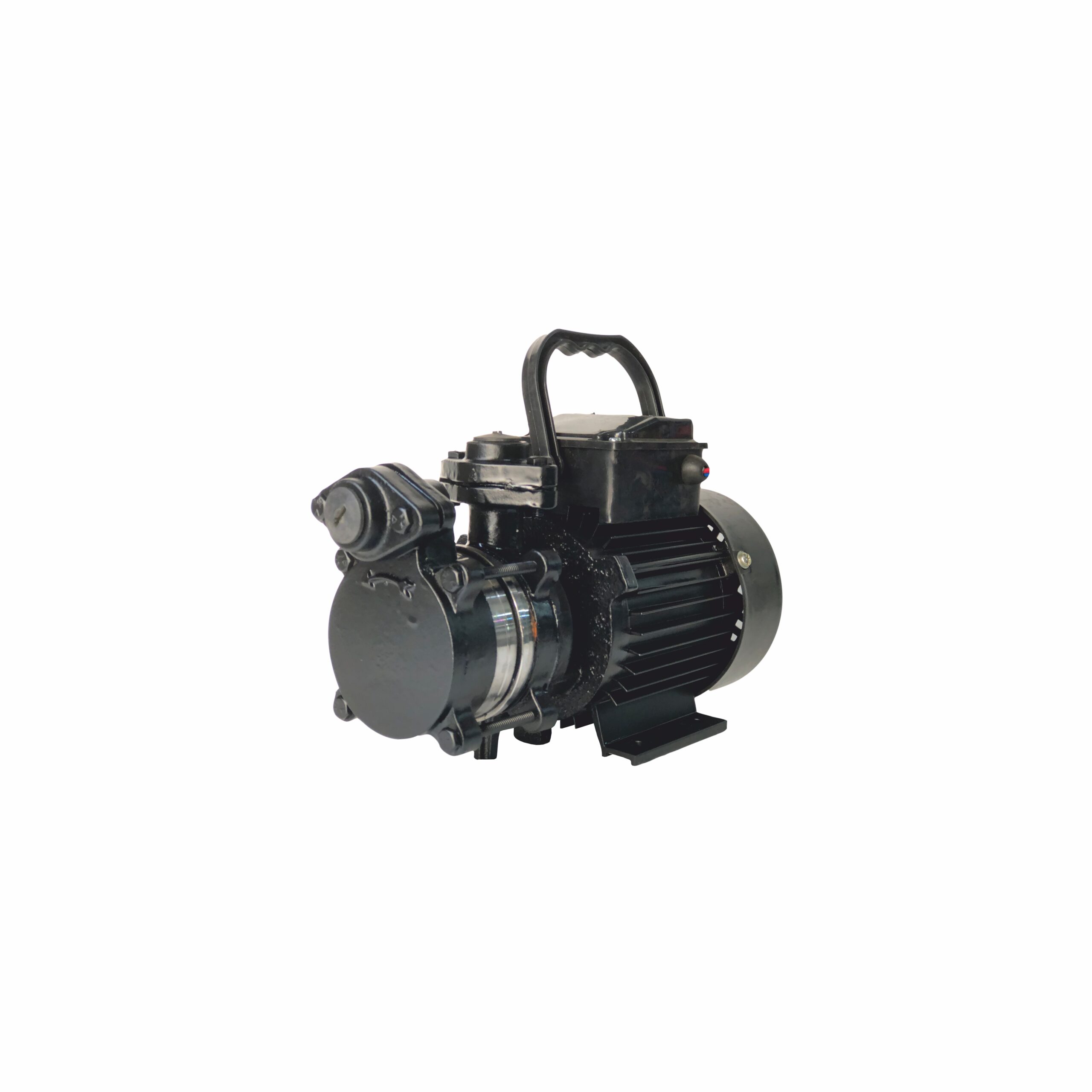

DOMESTIC SELF PRIMING PUMP DVE – SERIES (SUPER SUCTION)
DOMESTIC SELF PRIMING PUMP DVE – SERIES (SUPER SUCTION)
₹0.00
MODEL – YM-DVI1E
Application:
- Used For Water Supply in Residential Bungalows, Flats,Hotels, Garages, Dairies and Laundries.
- Water Circulation for Fountains and Solar Heater Systems.
- Gardening and Curing at Civil Works.
- Used as Suction Booster in Cities.
- Ornamental Sprinklers.
ALUMINIUM & C.I. BODY
| Technical Data | |
|---|---|
| Range of Power | 0.37 KW |
| Range of HP | 0.5 |
| Version | Single Phase, 160–240 Volt | Permanent Split Capacitor |
| RPM | 2880 |
| Frequency | 50 Hz |
| Insulation Class | B |
| Duty Type | S1 (Continuous) |
| Operating Data | |
|---|---|
| Discharge Range | 15 to 55 LPM |
| Suction Lift | 8 Meters |
| Nominal Pump Size | 12×12 mm (Suc x Del) |
| Maximum Operating Pressure | 2.5 Bar |
| Maximum Liquid Temperature | 45°C |
| Maximum Ambient Temperature | 55°C |
| Material Details | |
|---|---|
| Particulars | Material Of Construction |
| Motor Body | Aluminium Extruded & C.I. FG-20 |
| Motor Shaft | SS 410 |
| Stator Core | CRNO |
| Winding Wire | E.C. Grade Copper Enamel Class F |
| Housing & Casing | C.I. FG-20 |
| Impeller | High Tensile Brass |
| Bearing | Ball Bearing |
| Mechanical Seal | Nitrile Rubber & Ceramic Ring |
